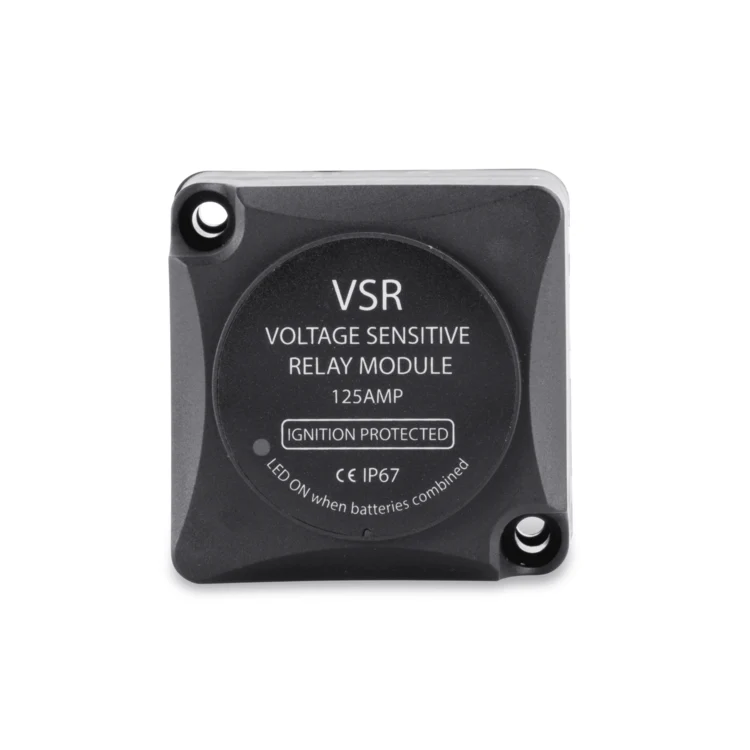

Voltage Sensitive Relay | BS11040

Automatically combines two batteries when charging and isolates the two batteries when not charging. Built-in LED indication when VSR is engaged. CE and IP67 certifications. No voltage drops comparing to battery isolator diodes (0.6V). Port for remote LED indicating VSR status. Robust glass fiber reinforced nylon enclosure. Storage mode allows zero power consumption when the engine is off. Surface or panel mount options prove flexibility when installing.

• Nominal Voltage: 12VDC
• Combined Voltage: 13.3VDC
• Open Voltage: 12.8VDC
• Continuous Current Rating: 125A
• Intermittent Current Rating: 140A
• Power Consumption: 10mA (Standby)/ 330mA (Engage), 0mA (Storage Mode)
• No voltage drops comparing to battery isolator diodes (0.6V)
• CE and IP67 Certifications
