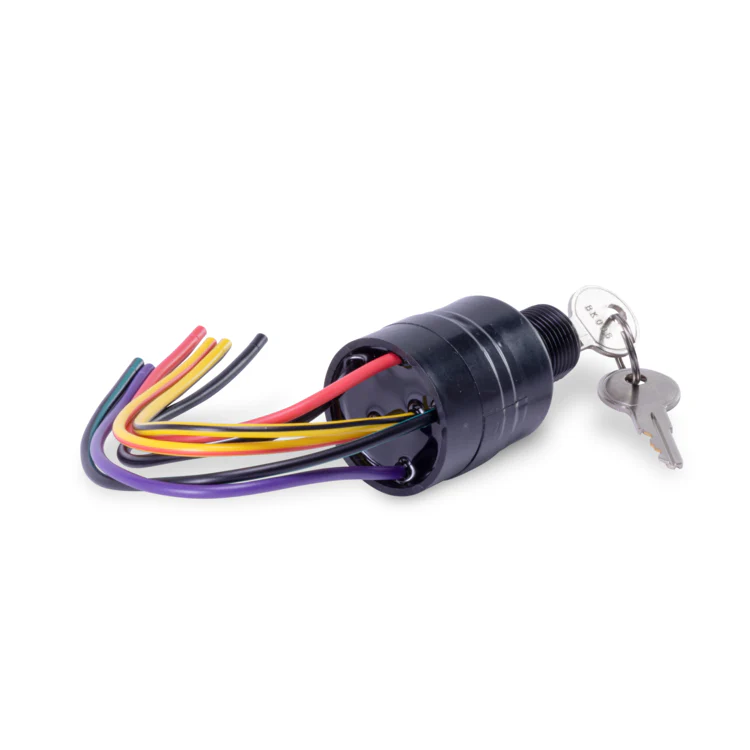

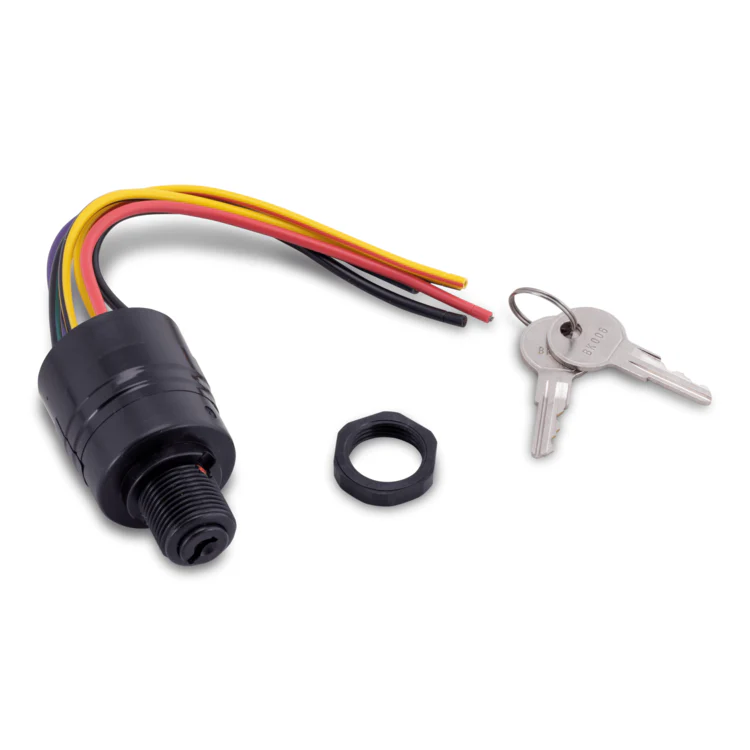

Ignition Switch - 3 Position Magneto | MP41070-2
Maximum corrosion protection - eliminates oxidation. Inner seal between cylinder lock and contact plate. Non-conductive housing eliminates potential shorts. Note: Colors on switch wires match factory color codes.
- Switch Function: Off - Run - Start
- Back Up Nut: Not Required
- Face Nut: Hex Black Plastic
- Hole Size: 7/8"
- Length: Short: 5/8" maximum panel thickness
- Material: Marine grade glass-filled Polyester
- Rated Choke: 7 Amp @ 12v DC
- Rated Ignition: 15 Amp @ 12v DC
- Rated Solenoid: 30 Amp @ 12v DC
- Terminal Type: 6 Color Coded Wire Leads/Potted
$14.03
Original: $40.09
-65%Ignition Switch - 3 Position Magneto | MP41070-2—
$40.09
$14.03Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Maximum corrosion protection - eliminates oxidation. Inner seal between cylinder lock and contact plate. Non-conductive housing eliminates potential shorts. Note: Colors on switch wires match factory color codes.
- Switch Function: Off - Run - Start
- Back Up Nut: Not Required
- Face Nut: Hex Black Plastic
- Hole Size: 7/8"
- Length: Short: 5/8" maximum panel thickness
- Material: Marine grade glass-filled Polyester
- Rated Choke: 7 Amp @ 12v DC
- Rated Ignition: 15 Amp @ 12v DC
- Rated Solenoid: 30 Amp @ 12v DC
- Terminal Type: 6 Color Coded Wire Leads/Potted
