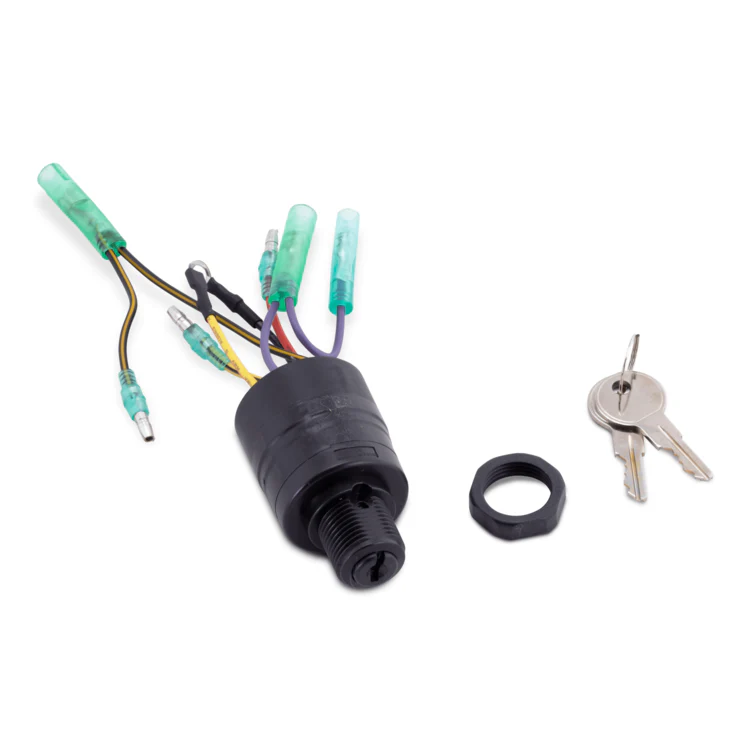

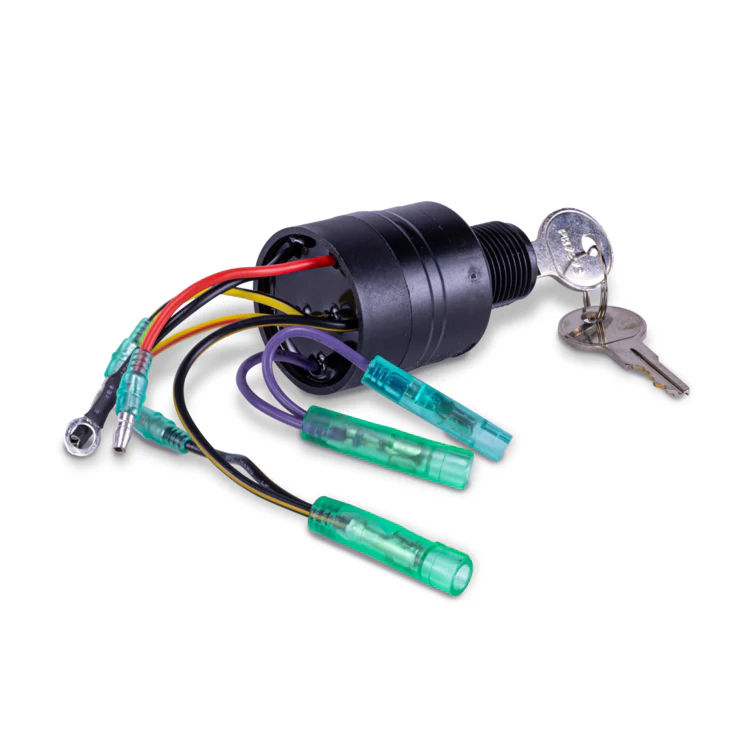

Ignition Switch - 3 Position Magneto | MP51090
Exact OEM replacement installation. Heavy duty potted construction. Minimal bleed per circuit. Molded umbrella type key. Push to choke. Maximum corrosion protection - eliminates oxidation. Inner seal between cylinder lock and contact plate. Non-conductive housing eliminates potential shorts.
- Switch Function: Off - Run - Start
- Back Up Nut: Not Required
- Face Nut: Hex Black Plastic
- Hole Size: 7/8"
- Length: Short: 5/8" maximum panel thickness
- Material: Polyester
- Rated Choke: 7 Amp @ 12v DC
- Rated Ignition: 15 Amp @ 12v DC
- Rated Solenoid: 30 Amp @ 12v DC
- Terminal Type: 6 Color Coded Wire Leads/Potted
$21.70
Original: $61.99
-65%Ignition Switch - 3 Position Magneto | MP51090—
$61.99
$21.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Exact OEM replacement installation. Heavy duty potted construction. Minimal bleed per circuit. Molded umbrella type key. Push to choke. Maximum corrosion protection - eliminates oxidation. Inner seal between cylinder lock and contact plate. Non-conductive housing eliminates potential shorts.
- Switch Function: Off - Run - Start
- Back Up Nut: Not Required
- Face Nut: Hex Black Plastic
- Hole Size: 7/8"
- Length: Short: 5/8" maximum panel thickness
- Material: Polyester
- Rated Choke: 7 Amp @ 12v DC
- Rated Ignition: 15 Amp @ 12v DC
- Rated Solenoid: 30 Amp @ 12v DC
- Terminal Type: 6 Color Coded Wire Leads/Potted
